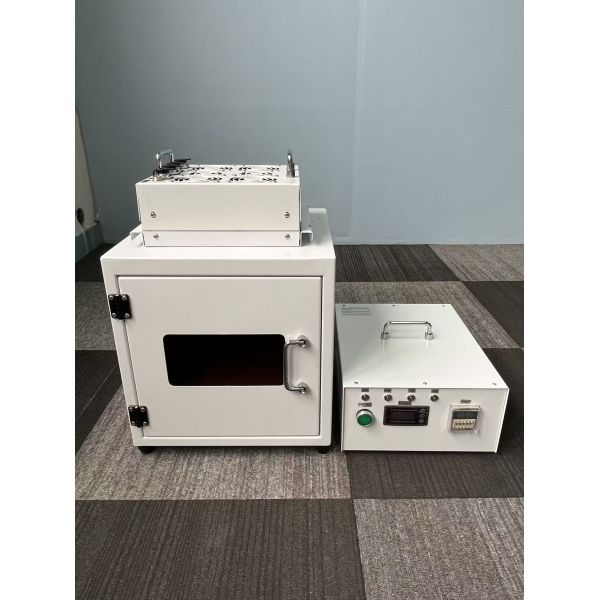

1200W Multi-Spectrum LED UV Curing System with Water Cooling and 18W/CM2 UV Intensity for Laboratory Research

Brand Name : CG

Model Number : CG-CT3-40027-1500A/C

Certification : CE*RoHS

Place of Origin : China

MOQ : 1set

Price : 2000-2200usd 1 set

Payment Terms : L/C,T/T

Supply Ability : 10 SET/DAY

Delivery Time : 10-15 Working days

Packaging Details : Wooden case

Keyword : LED UV Curing System

Power : 1200W

Input voltage : AC85-265V

Wave length : 395nm

Cooling way : Water cooling

UV intensity : 18W/CM2

Warranty : 2 years

Package : Wooden case

Contact Now

Multi-Spectrum LED UV Curing Station for Laboratory Research

Four Wavelength UV Curing Solution with LED UV Lamp for Laboratory

LED-based UV curing represents a cutting-edge leap in photochemical processing. By utilizing advanced semiconductor technology to emit targeted ultraviolet radiation, it facilitates the instantaneous polymerization of UV-sensitive resins, inks, and coatings. This modern approach surpasses traditional methods in both curing precision and operational consistency.

LED UV Curing System Datasheet

Model	CG-CT3-40027-1200A	Lamp Color	Rose Golden
Power	1200W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20,000H
Cooling Way	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

Why Upgrade to LED UV Curing?

Power Optimization: 1:6 energy consumption ratio compared to conventional mercury lamps (1000W LED ≈ 6000W Mercury)
Sustainable Manufacturing: Zero mercury content and no ozone generation for full environmental compliance
On-Demand Operation: Instantaneous switching increases throughput without the wait times of traditional systems
Thermal Management: Low-temperature curing prevents deformation on PE and specialized film inks
Longevity: Industrial-grade builds provide up to 20,000 hours of consistent performance

Product Details

1200W Multi-Spectrum LED UV Curing System with Water Cooling and 18W/CM2 UV Intensity for Laboratory Research

LED UV Curing System FAQ

Q1: What's the wavelength of the LED UV lamp?

A1: Usually 395-405nm. The 395nm/385nm is used for printing machines, 365nm is for adhesive applications.

Q2: What's your LED brand?

A2: LG/Seoul

Q3: What's the material of lamp and lens?

A3: Aluminium / Quartz

Q4: What's the cooling way for the LED UV curing system?

A4: Water or air cooling

Q5: Can the UV intensity be changed?

A5: Yes, the UV intensity is changeable from 0%-100%

Q6: What's the max energy of UV LED lamp?

A6: It depends on emitting time - the longer the emitting time, the higher the total energy output.

Q7: What's the lifespan of the UV LED curing lamp?

A7: Our warranty is 2 years for all system components (Chiller / power supply). Most systems can reach 5 years of operation.
